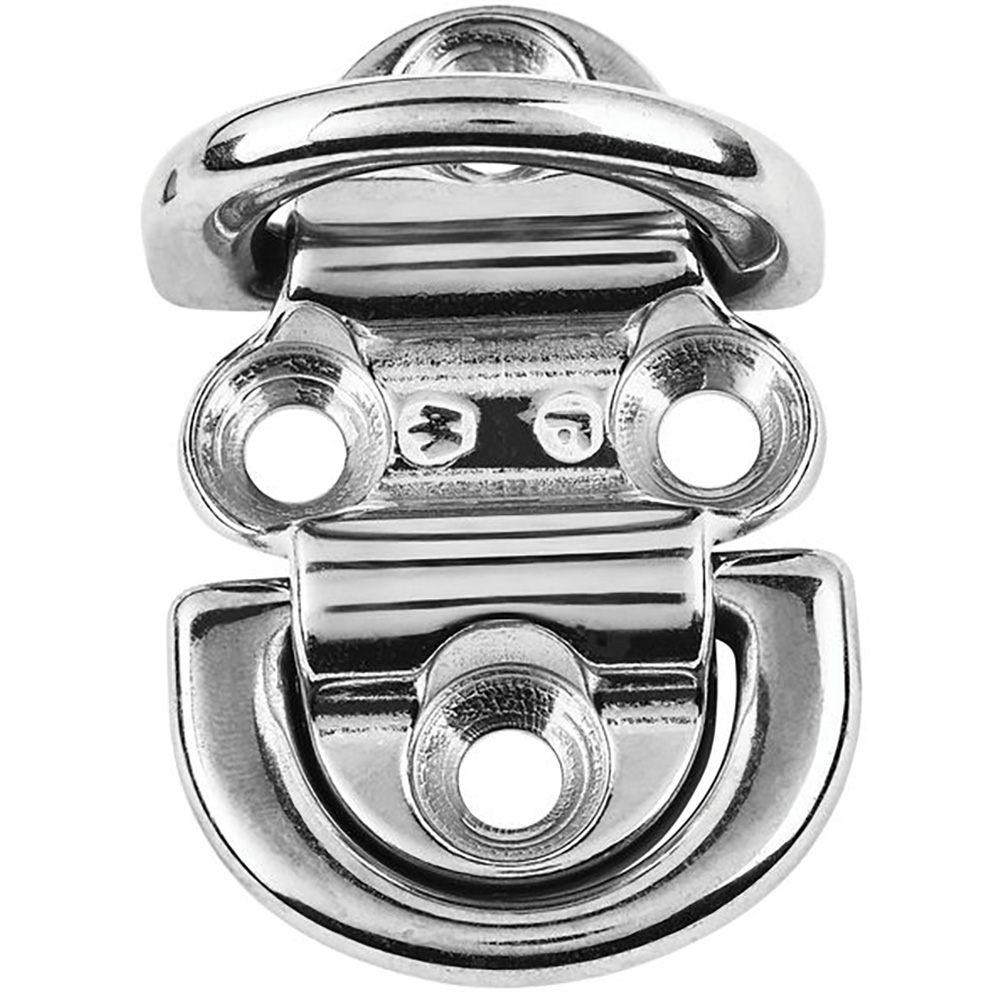

Double Folding Pad Eye - 10mm Diameter - 25/64"
Features:
- Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
- Perfect solution attachment (stay, blocks, jib tack point)
- Possibility to attach several stays
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates noise and unpleasant vibrations
Applications:
- For any fastening/attachment application
- Allows to attach several shrouds
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 10050 / (kg) 4560
- Breaking load: (lb) 19840 / (kg) 9000
- Weight: (lb) 1.089 / (g) 494
Dimensions:
- A: (inch) 2 61/64" / (mm) 75
- B: (inch) 1 49/64" / (mm) 45
- C: (inch) 29/32" / (mm) 23
- d diameter: (inch) 13/32" / (mm) 10.5
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 4 3/32" / (mm) 104
- F: (inch) 3 5/64" / (mm) 78
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Documentation
| Quick Guide | Download PDF |
|---|
