Seatronx 19" Commercial Touch Screen Display
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
$6,210.52

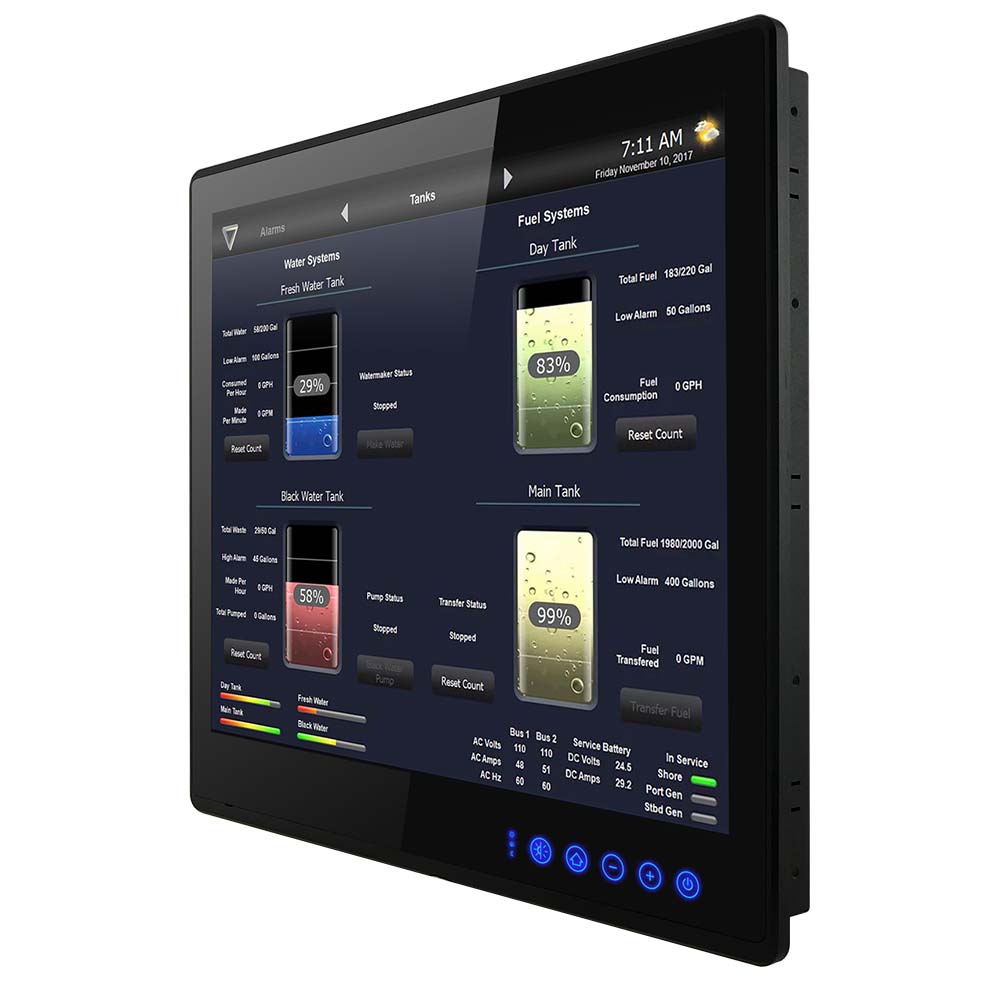

19" Commercial Touch Screen Display
Electronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching).
Features:
- Mounting - Panel Mount , Vesa Mount
- Dimensions - 16.889" x 15.433" x 2.866"
- Cutout Dimensions - 16.03" x 14.13"
- Projected Capacitive touch
- Optional ECDIS Color Calibration
- 2x 2W Speakers
- 75 dB - 80 dB buzzer
Technical Specifications:
- Diagonal (active area) Inch - 19"
- Native Resolution (Pixels) - 1280x1024
- Contrast Ratio - 1200:1
- Brightness - 350
- Viewing Angle (left, right) - 89, 89
- Viewing Angle (up, down) - 89,89
- Backlight Dimming - -0 (3 Stage ECDIS Option)
- Inputs - 1 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
- Power Source - 9-36VDC Isolated power supply 60W (Max)
- Power on/off dimming control - Front Bezel
- IP Rating - IP65 Front
- Operating Temperature (°C) - -15 to 55
Documentation
| Quick Guide | Download PDF |
|---|
Accessories
- SKU 85536 — MFG# 000-15100-001
