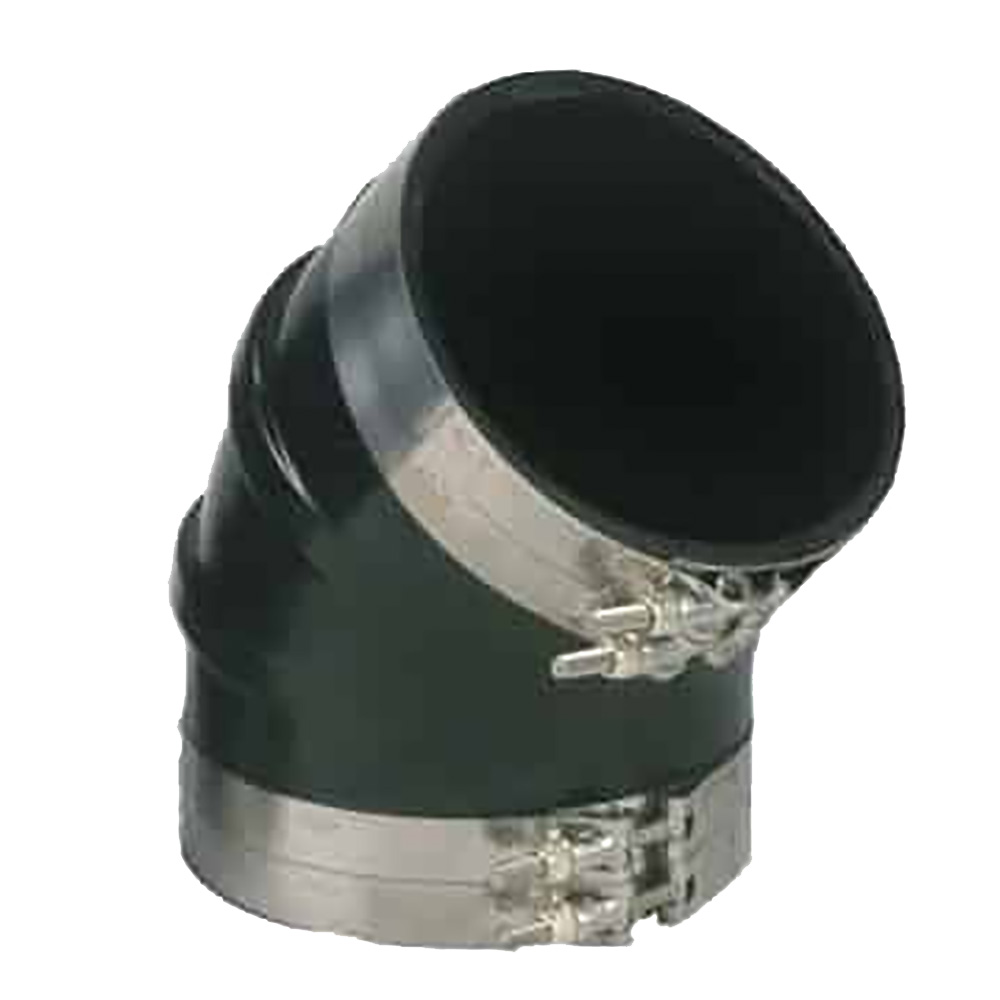

Trident Marine 8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 250°F (121°C)

Specifications:

• Inner Diameter: (inch) 8” / (mm) 203
• Outer Diamter: (inch) 8.74" / (mm) 222.0
• A: (inch) 2.25” / (mm) 57.2
• B: (inch) 2.25” / (mm) 57.2
• C: (inch) 8.25” / (mm) 209.5
• W: (inch) 0.37” / (mm) 9.4
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 4.3 / (Kg/Ea) 1.95
