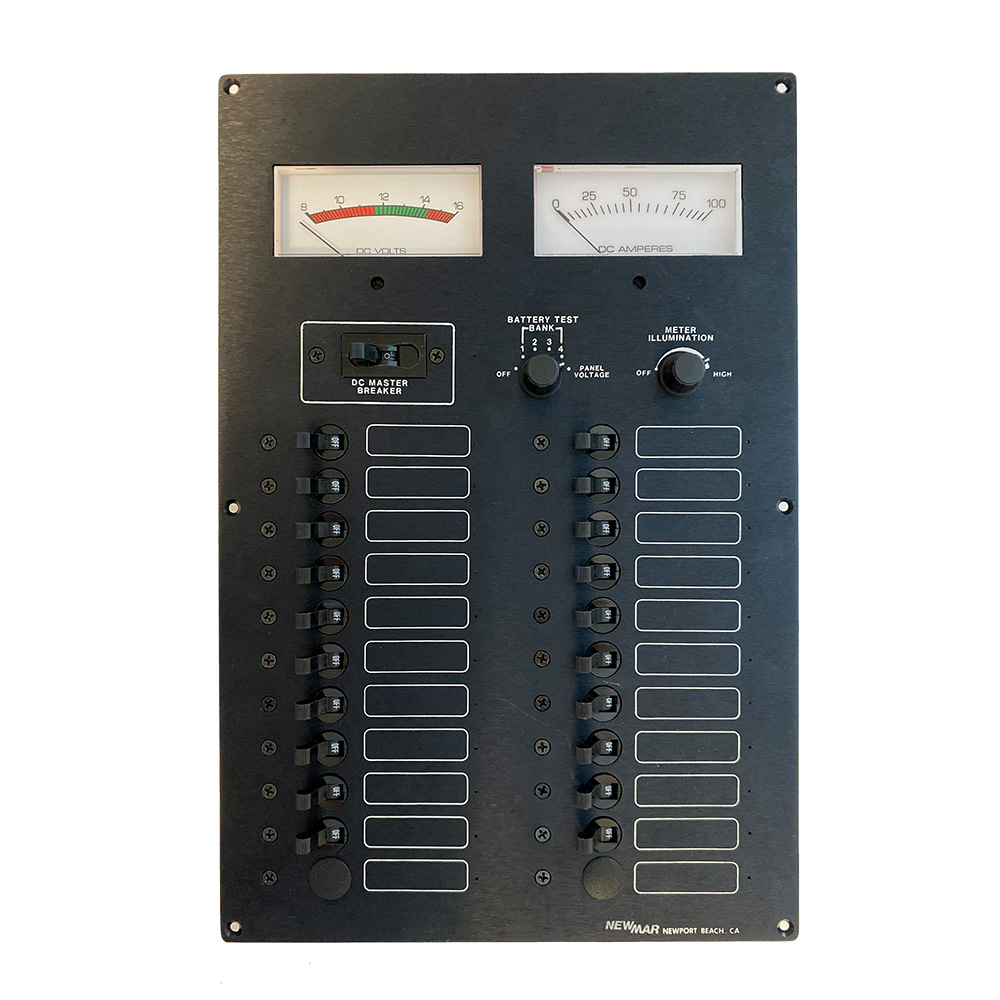

ES-1 Elite DC Panel
This DC master control panel offers a large DC circuit capacity and can be installed by itself or in conjunction with the ES-2 panel to make a complete AC-DC control and monitoring system.
Features:
- Analog DC volt and ammeter, back-illuminated with dimmer
- 12-volt standard, 24-volt optional
- 4 battery bank test switch
- DC master breaker (100 Amp standard; 50 or 75 amp optional)
- 22 branch circuit capacity, 20 installed standard; 3-5A, 5-10A, 6-15A,
- 6-20A or specify
Specifications:
- Size (W x H x D): 10 x 15 x 4 inches
- Weight: 8 lbs. (3.6 kg)
