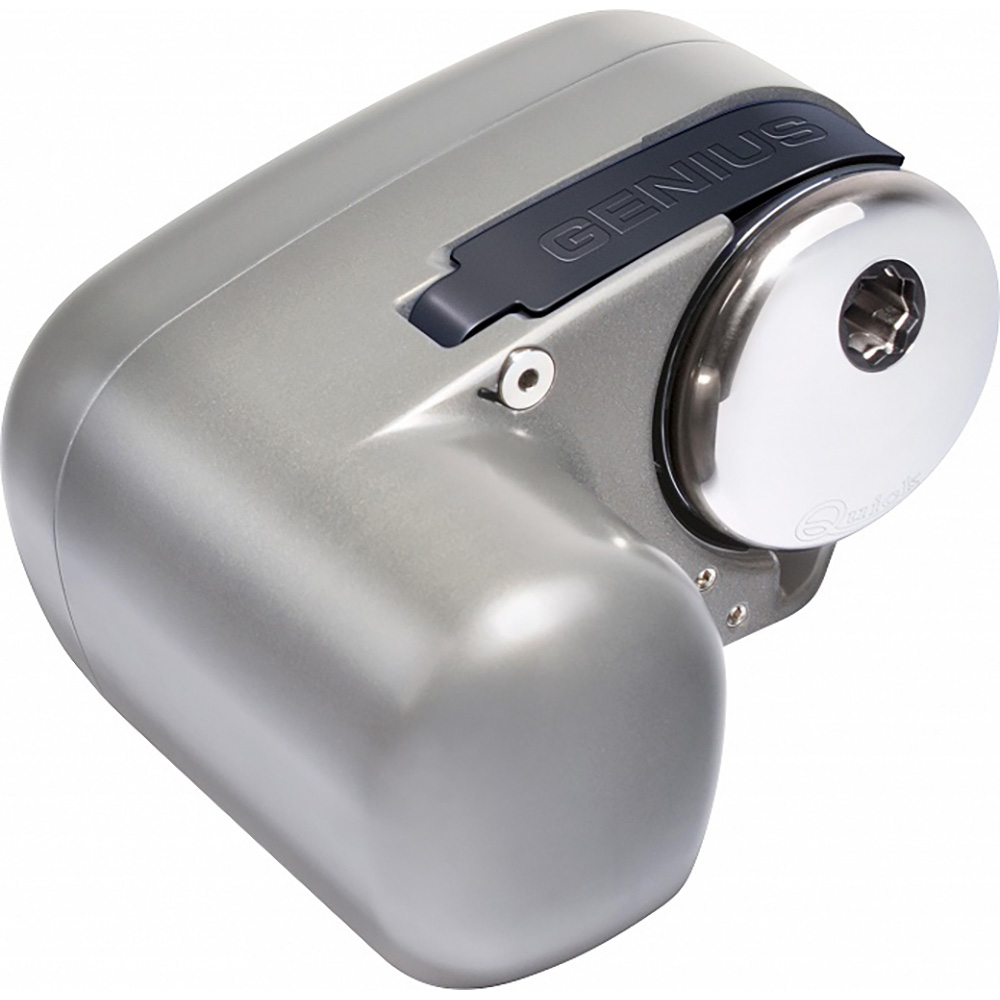

Quick Genius GP2 500 Windlass - 150W, 12V, 1/4" Gypsy
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$2,233.63
CAD
US$1,584.13
USD
Exchange is Approximate — Final Price at Checkout
Back to: Quick
Genius GP2 500 Windlass - 150W, 12V, 1/4" Gypsy
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- White composite material base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Includes T6411-12 Solenoid
Specifications:
- Motor power - 150 W
- Motor supply voltage - 12 V
- Maximum pull - 220 Kg / 485 lb
- Maximum working load - 70 Kg / 154 lb
- Working load - 35 Kg / 77 lb
- Current absorbtion @ working load - 29 A
- Maximum chain speed - 38,9 m/min / 127.6 ft/min
- Maximum chain speed @ working load - 28,5 m/min / 93,5 ft/min
- Weight - 13.2 lb
