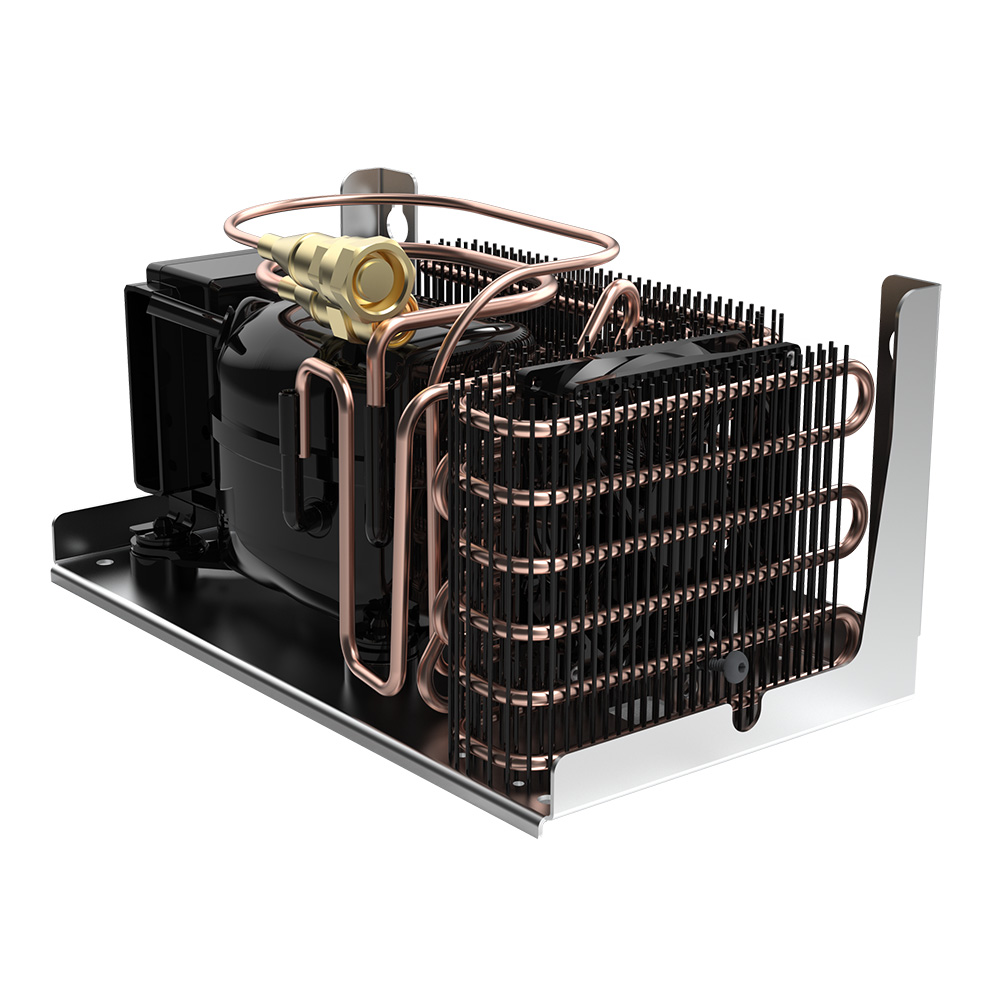

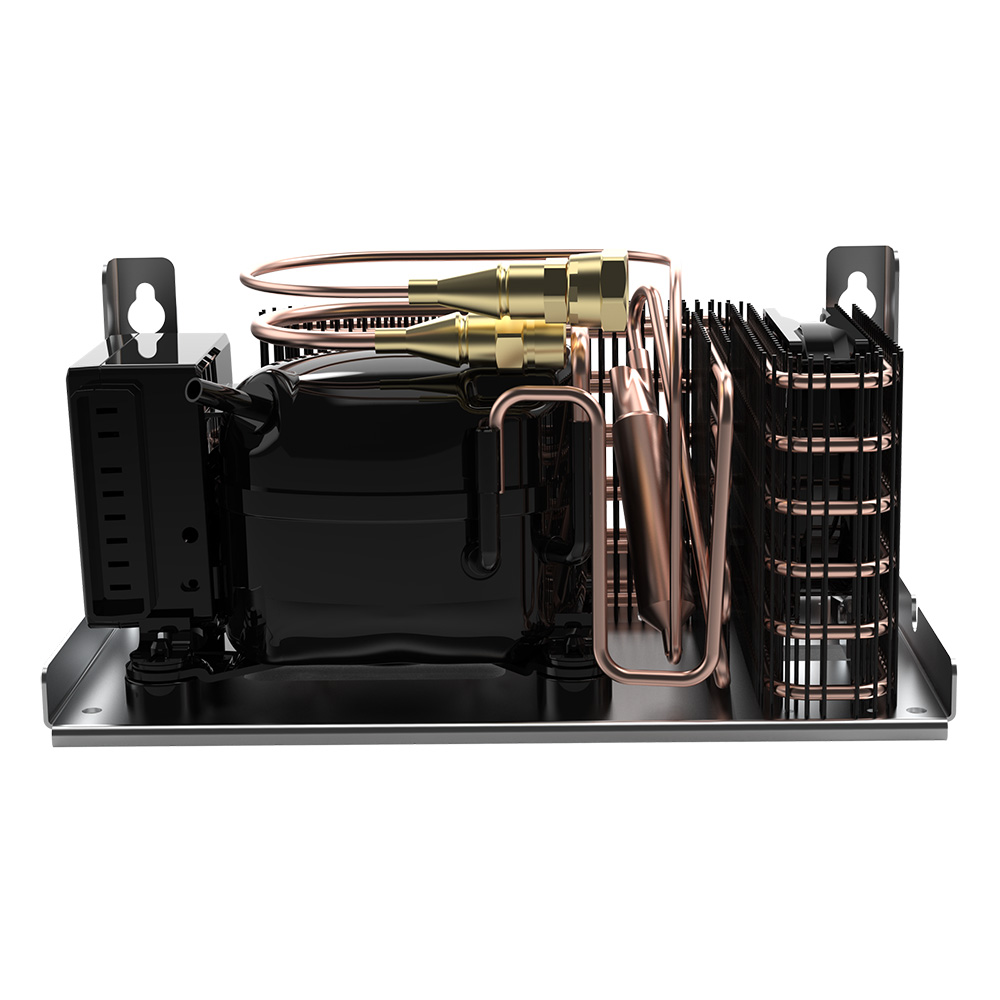

Dometic CX250 Cold Machine Condensing Unit f/Volumes Up to 250L - 12/24VDC

CX250 Cold Machine Condensing Unit for Volumes Up to 250L - 12/24VDC

The Dometic CX & VX range offers flexible, high-performance refrigeration tailored to your onboard needs. With a wide choice of evaporators and compact condensing units, it’s easy to configure the perfect cooling setup, whether you’re upgrading an existing box or fitting out a new build.

The Dometic CX & VX series delivers tailored cooling power for every boat and every box. With compact condensing units and versatile evaporators, the system adapts seamlessly to volumes from 50 to 400 L. Precision digital control, reliable quick-connect couplings and low-GWP (Global Warming Potential) refrigerant make installation simple and performance dependable. Whether for a compact galley fridge or a high-capacity fish box, CX & VX gives you the flexibility to design refrigeration that’s as individual as your voyage.

Benefits of Dometic CX & VX Series:

• Flexible combinations of condensing units and evaporators to suit boxes from 50 - 400L
• Reliable quick-connect couplings for fast, secure installation
• Compact compressor units designed for tight marine spaces
• Modern roll-bond evaporators with clean faceplate design for seamless integration
• Precision digital temperature control with high-accuracy NTC sensor
• Energy-efficient performance with low-GWP (Global Warming Potential) refrigerant (R1234yf)
• Suitable for both new builds and retrofit upgrades
• Multiple evaporator formats (flat, O-box, fan-cooled, freezer) to match any compartment

Features:

• 50 - 400 L (depending on CX unit and VX evaporator pairing)

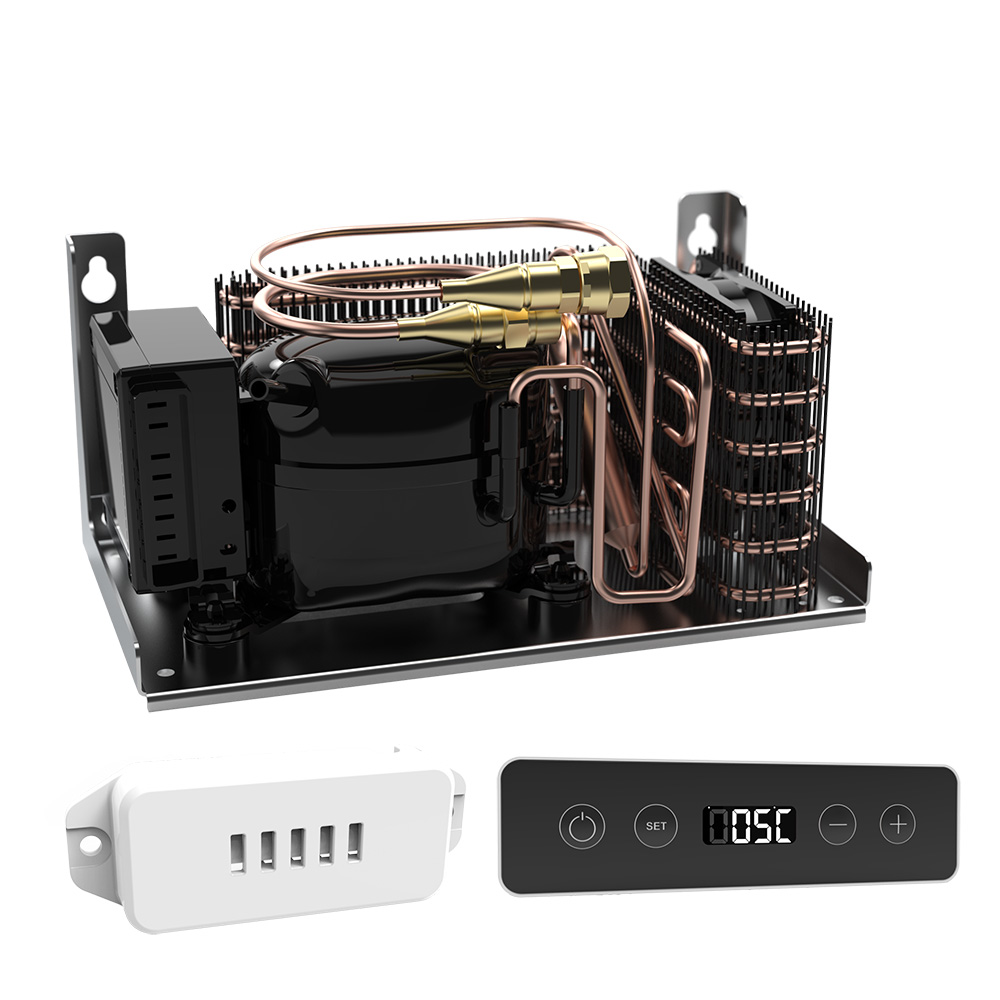

• Digital display (internal or external mount), NTC temperature sensor
• Remote compressor + evaporator plate system with spring couplings
• Universal fit, horizontal or vertical mounting, professional or DIY

Technical Specifications:

• Max. Cooling Capacity (L / cu ft) - 250 / 8.8
• Connection Voltage - 12/24VDC
• Power Consumption (Rated Max W) - 75
• Refrigerant Type - R1234yf
• Global Warming Potential (GWP) - 0.501
• Refrigerant Quantity (g) - 35
• CO2 Equivalent (tCO2) - 0.000018
• Dimensions (W x D x H) (in) - 11.4 x 6.1 x 5.7
• Weight (lb) - 9.7
