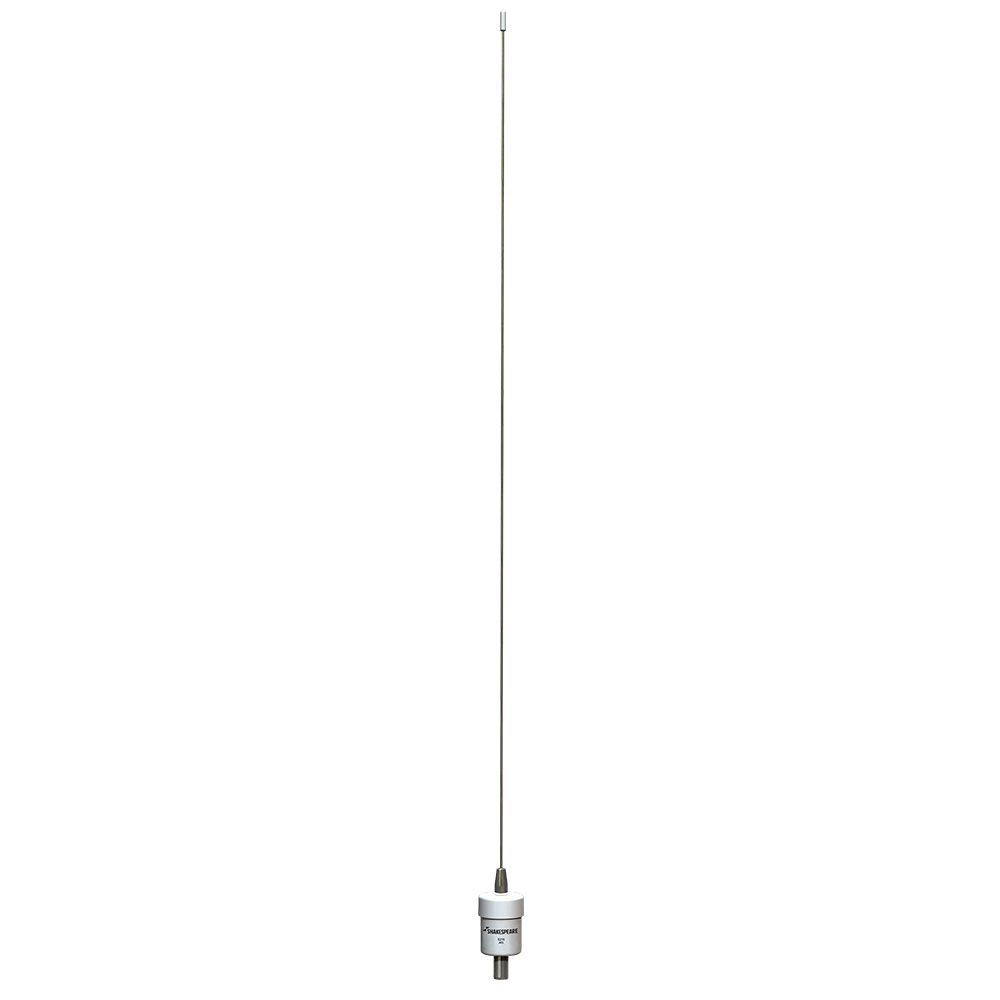

Shakespeare 5215 3' Stainless Steel Whip Antenna
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
17 available
$138.99
Shakespeare Style 5215 SQUATTY BODY® VHF Marine
36" LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
technical Specifications:
36" LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
- Hermetically sealed, tin-plated copper wire coil
- Stainless steel body and whip
- SO-239 connector - cable sold separately
- Mount: Stainless steel "L" bracket supplied, for mast mounting
- One section
- Shakespeare Limited Warranty: 2 years
technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 @ 156.8 MHz |
| Impedance: | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | SO-239 connector |
| Height (feet): | 3 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Documentation
| Quick Guide | Download PDF |
|---|
